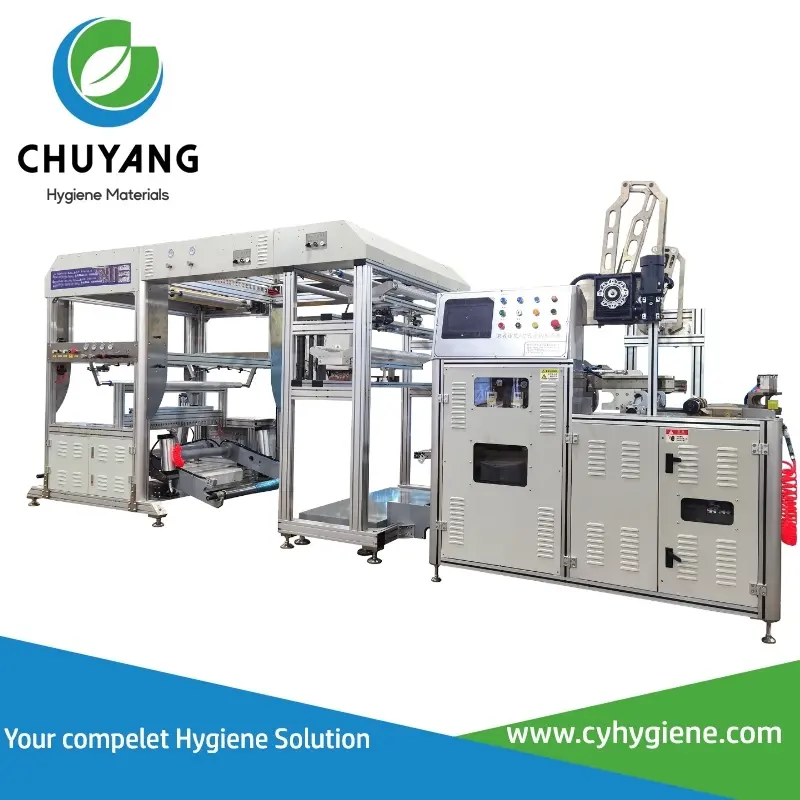

Non woven Fabric Double Layer 3D Lamination Embossing Machine

Quanzhou Chuyang Hygiene Materials Co.,Ltd

Non woven Fabric Double Layer 3D Lamination Embossing Machine

Power: three-phase; 380V; 50HZ. Installed power:≤40KW
Dimensions:(L*W*H):6.0*2.0*2.5M(for reference)
Raw Material Specifications: Minimum cutting width:65mm; Maximum rolling width:650mm
Equipment Color:Rack metal silver aluminum alloy+gray white sheet metal outer frame
Raw material : Hot air surface layer non-woven fabric35-45g/㎡
Speed: Design speed:90M/min. Actual production speed: 45-75M/Min
Qualified Rate:≥97%
Configuration:Dull servo power double-layer compound embossing machine
Certification:CE,ISO
Working Voltage: 380V
Working Air Pressure: 6Bar
Temperature Range:0℃-45℃
Place of Origin: China

Description

The non-woven double layer 3D lamination embossing machine is an advanced and efficient device designed for enhancing the quality and appearance of non-woven materials. With its innovative design and cutting-edge technology, the machine offers exceptional performance and versatility in various industries.

Main technical parameters:

Equipment name	Double layer 3D composite embossing machine
Production product	Hot air surface layer non-woven fabric 35-45g/㎡
Power Supply	three-phase; 380V;50HZ. Installed power:≤40KW(including mold heating)
Design and production speed	Design speed: 90M/Min. Actual production speed:45-75M/Min(according to mold pattern)
Production material specifications	Maximum winding width≤650mm;Maximum unwinding weight:150KG
Overall dimensions(m)	(LWH):6.02.02.5M(for reference)
Equipment color	Rack metal silver aluminum alloy+gray white sheet metal outer frame
Qualification rate	Qualification rate≥97%(excluding material replacement joints and edge cutting materials)
Preparation scheme	Preparation of full servo power double-layer compound embossing machine
