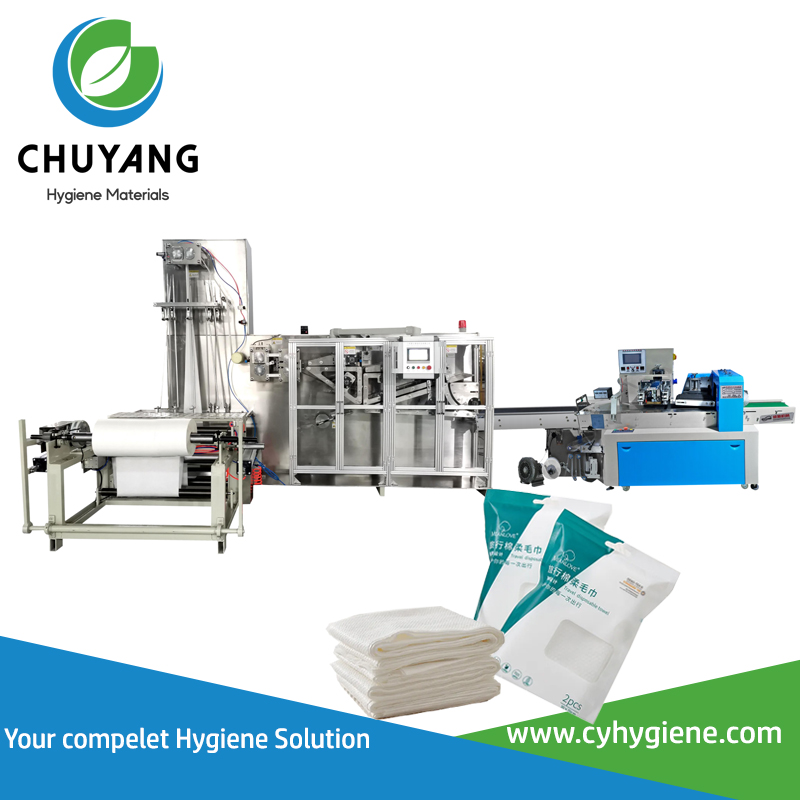

CY-2000 Fully automatic high speed disposable bath towel folding and packaging machine

Main features

1. Working principle of the equipment: manual unwinding → conveying → longitudinal folding → conveying → fixed-length positioning cutting → transverse folding → finished product conveying.

2. The equipment is operated in an uninterrupted and non-stop manner during production to ensure product folding accuracy and reduce raw material loss.

3. The equipment is equipped with a synchronous conveying device and a magnetic powder tension controller to ensure stable tension of finished product conveying. 4. The equipment is equipped with our factory's innovative multifunctional special-shaped folder, which can convert more product folding methods and is easy to adjust.

5. The equipment uses a servo-controlled slider-type transverse fork knife, which can be folded horizontally up to three times.

6. The equipment uses servo-controlled imported tool cutting, which is accurate.

7. The equipment uses a servo motor combined with a PLC programming controller and a microcomputer display screen to jointly control production. All production parameters are clear at a glance and easy to operate.

8. The equipment shell is made of stainless steel.

9. The equipment has advanced design concepts, compact structure, fast speed, good stability, high production efficiency, and meets the requirements of various national health standards.

Main technical parameters

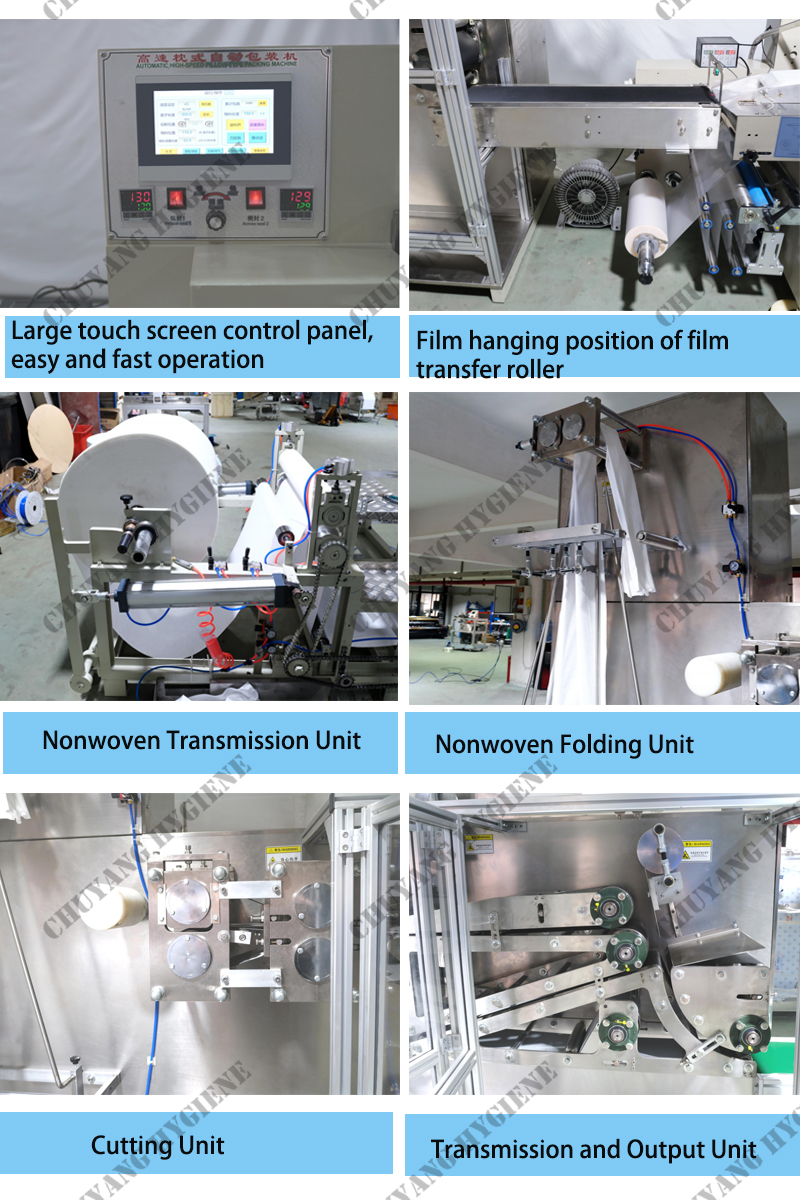

Machine Details

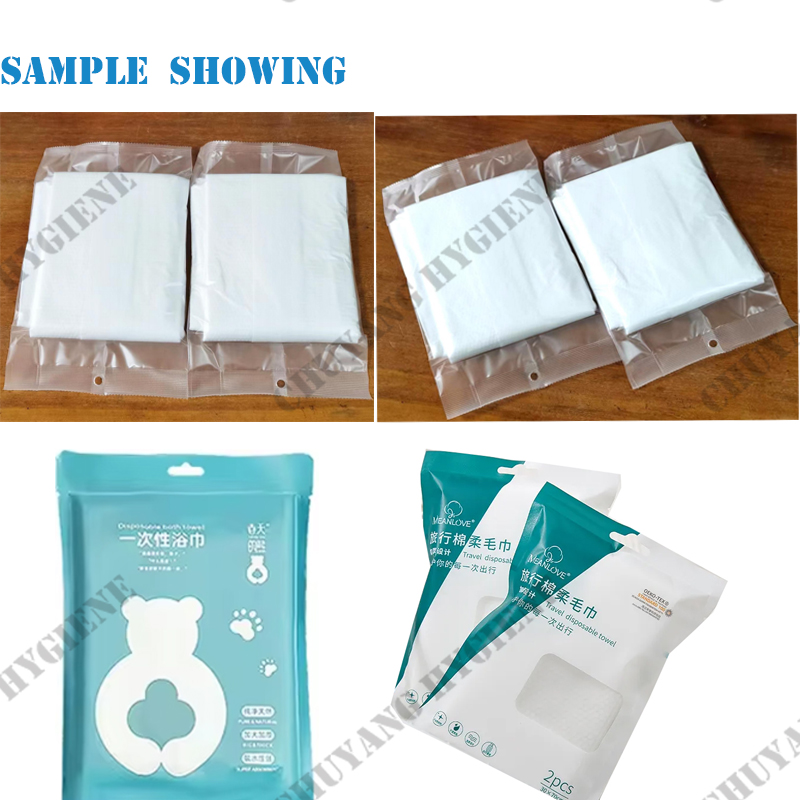

Finished Product
