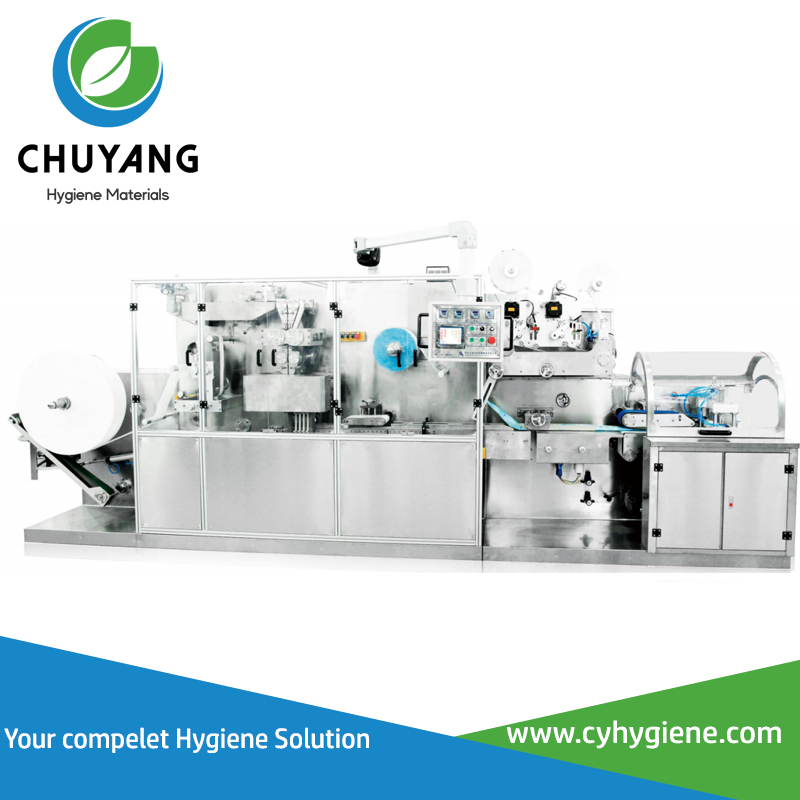

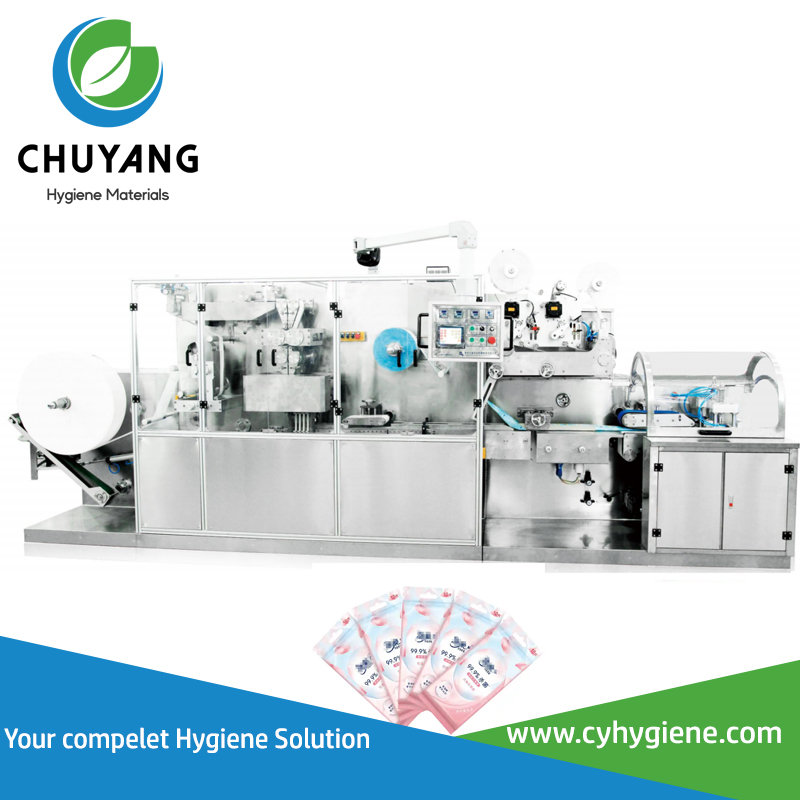

Full Automatic Wet Tissue Making Machine 5-30pcs Wet Wipes Production Line

Full Automatic Wet Tissue Making Machine 5-30pcs Wet Wipes Production Line

Process flow:

Automatic unwinding → Synchronous cloth feeding → Longitudinal folding → Soaking and humidification → Cutting and folding → Stacking and counting → Automatic packaging

→ Online coding → Automatic hole opening → Automatic labeling → Longitudinal heat sealing → Automatic pin insertion → Product air compression → Horizontal heat

Seal cutting → Finished product output

Machine Video:

https://youtube.com/shorts/u2pTOQllsx8?si=350AVgJm-6vYGIst

Main parameters

1. Product types: baby wipes, cosmetic wipes, ladies wipes and cleaning wipes.

2. Voltage: three-phase five-wire AC380V 50HZ

3. Power: total power 18.5KW

4. Production speed: 400-500 pieces/minute

5. Applicable materials: spunlace non-woven fabrics, wet-strength paper, hot-rolled cloth

6. Material weight: 35-60 g/m2

7. Unfolded size: product cut length 140-200mm; raw material width 140-200mm;

8. Folded size: product folded length 70-100mm, product folded width 50-80mm

9. Folding method: Z/N, independent extraction

10. Humidification range: 2.5-4 times, immersion humidification

11. Number of stacking pieces: 5-30 pieces/stack

12. Stacking height: up to 50mm

13. Liquid filling tank: 400L 1, material SUS304 stainless steel

14. Air source requirement: 0.6-0.8MPa

15. Equipment net size: 5000×1300×2000 (L×W×H)

16. Bucket net size: 900 x 900 x 1900

17. Machine weight: about 3.5 tons

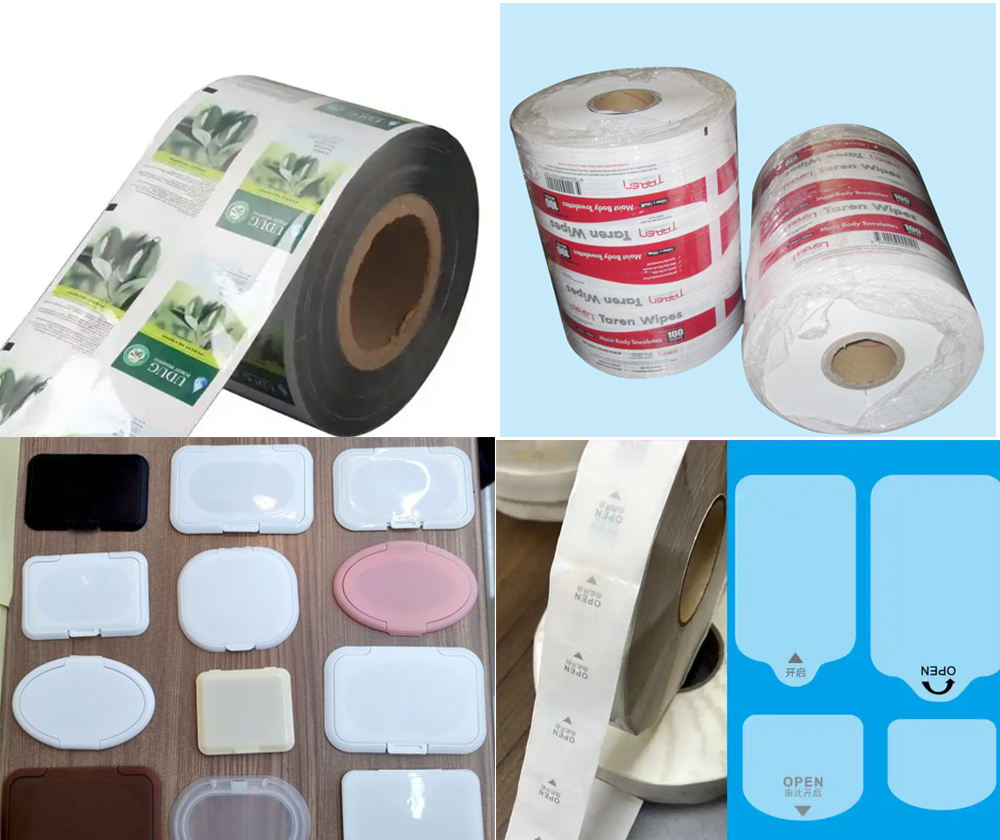

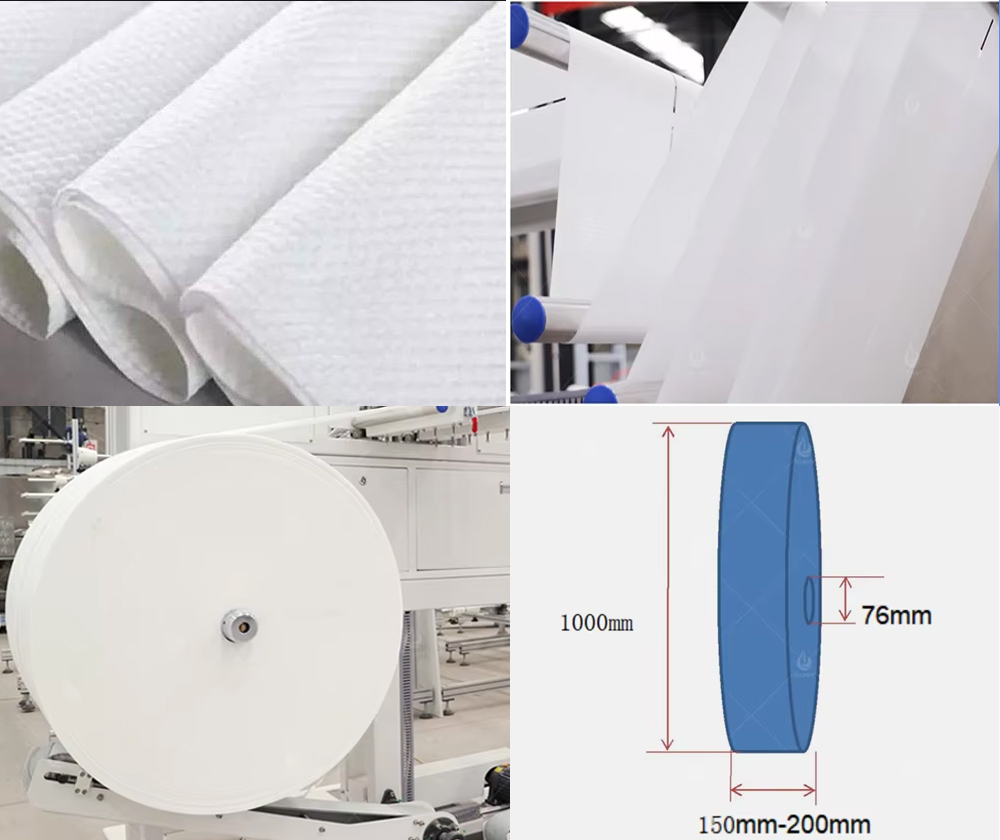

Raw Materials:

Spunlace Nonwoven plain &embossed

Applicable packaging materials: aluminized film, aluminum foil film, PE/PP, PO/PPET;

packaging material thickness: 0.07mm-0.09mm

Axis number setting: single axis operation

Envelope axis diameter: diameter 70-75mm

Roll film specifications: diameter 350mm, width 350mm

Packaging size: length (150-230) x width (100-120) x height (20-80)

others materials:Wet wipes sealing stickers；Wet wipes sealing lids

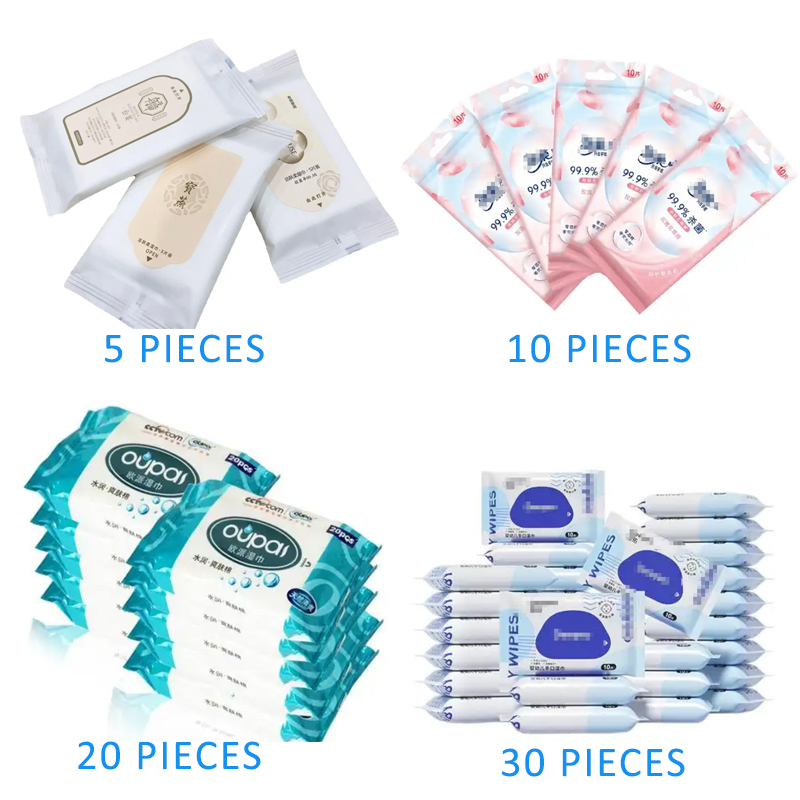

This production line is used to produce wet wipes in medium-sized bags. It is commonly used to produce wet wipes with 5-30 pieces/pack.

Production line production speed: 400-500 pieces/minute. During specific production, the number of pieces per pack can be set on the touch screen.

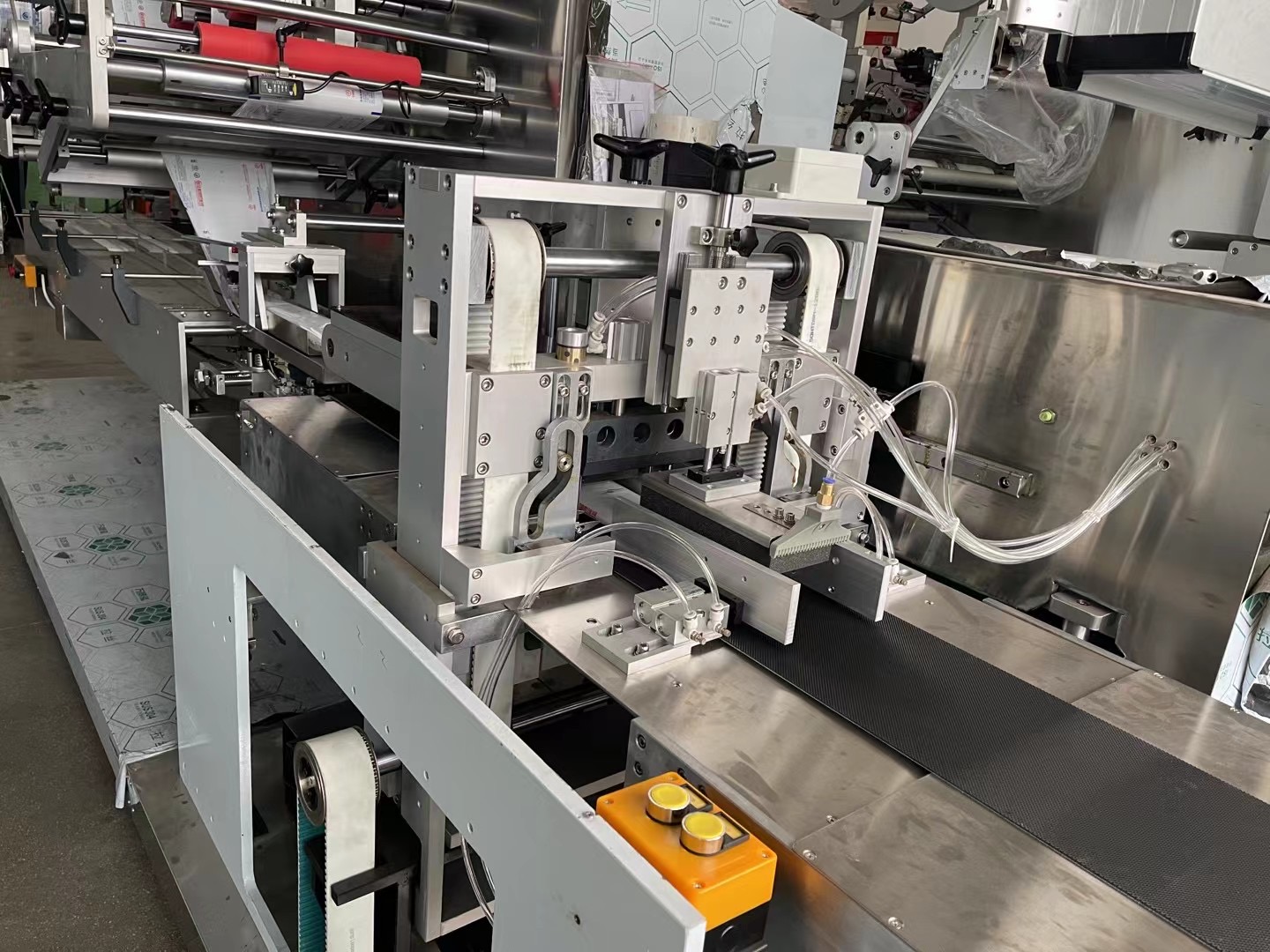

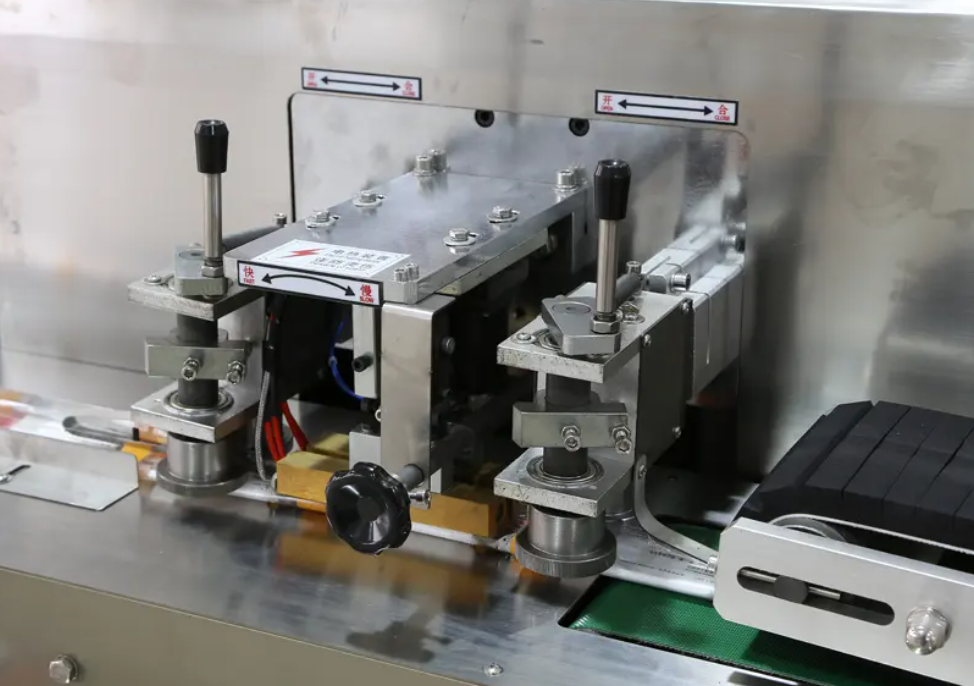

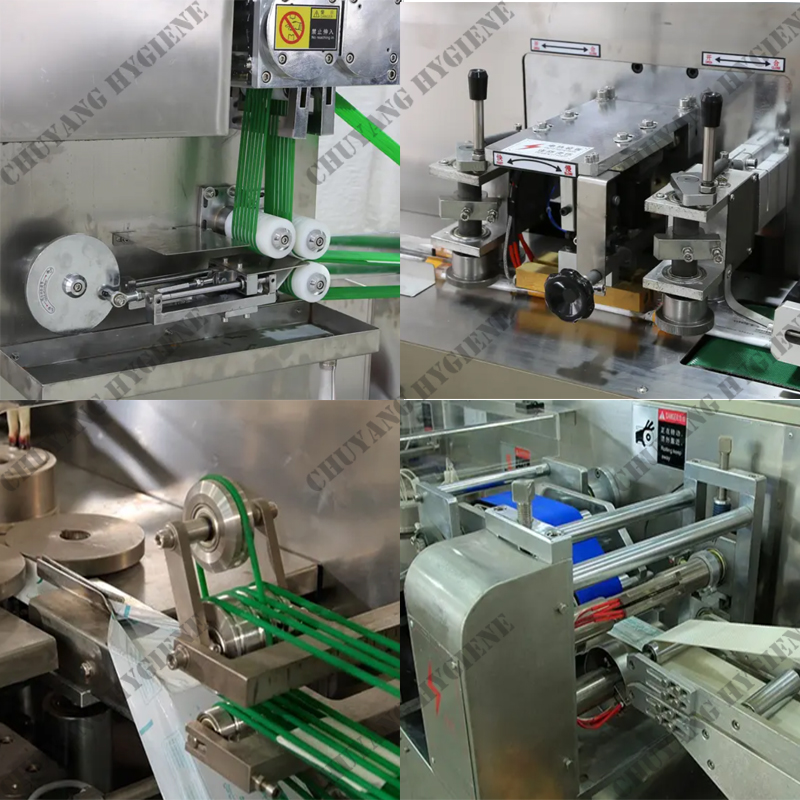

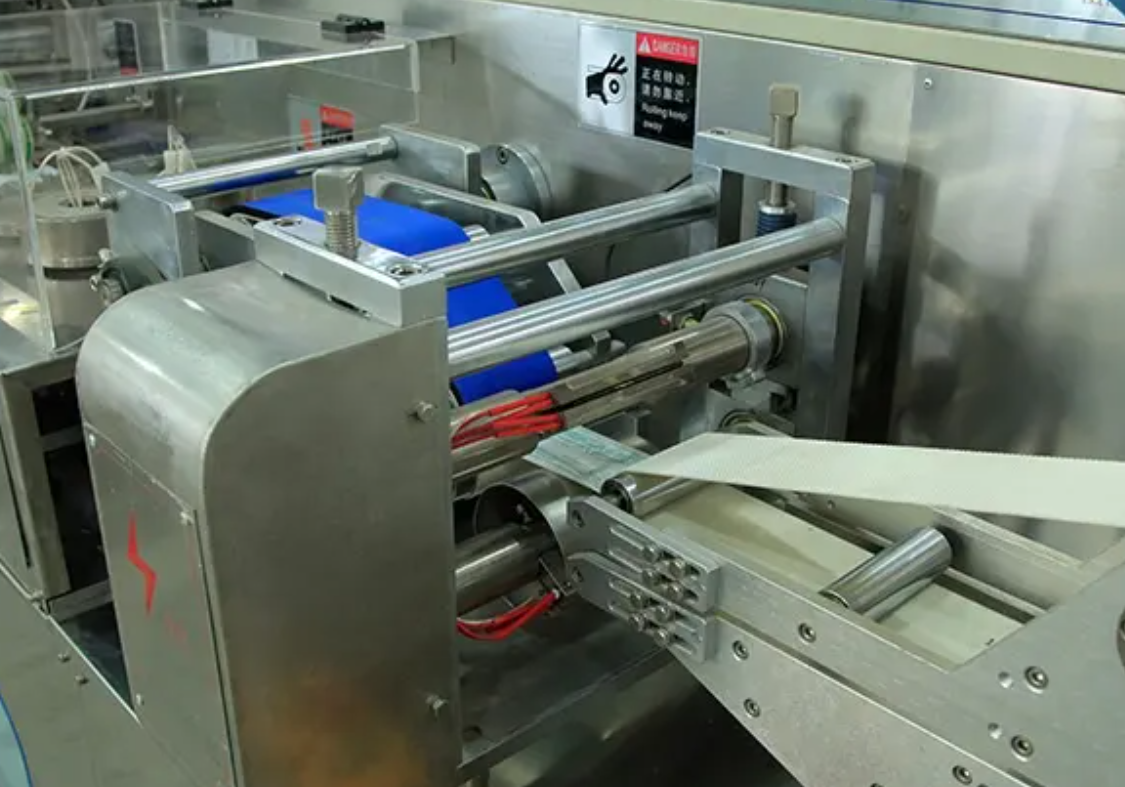

Machine Details

Workshop
