Fully Automatic Toilet Paper Production Line | Kitchen Towel Making Machine
Machine Fetures:
1. Automatic core feeding system, automatic log pusher after rewinding, then rewind the new log again.
2. Automatic edge-trimming, core feeding; auto edge trimming, glue spraying and sealing synchronously in onetime. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation data set and parametric fault shows on touch screen.

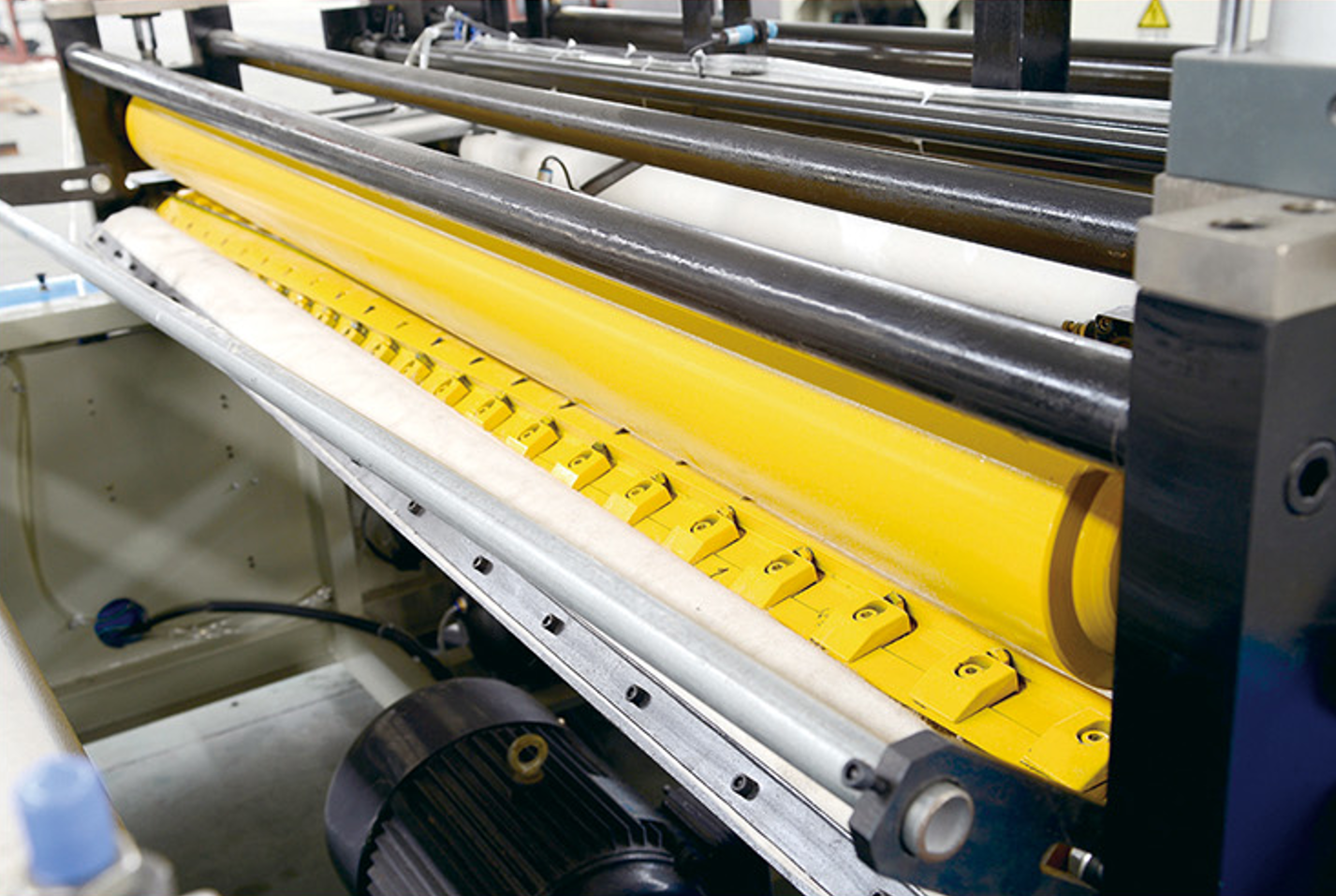

4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range45.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossment Unit: adopt point to point embossing rollers, making the two layers match wel, the paper is soft6.and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
Main Technical Parameter:
Machine Model | CY-SJA-1575Full automatic toilet paper machine |
Jumbo Roll Max Width | 1750mm(Other size can be specified) |
Jumbo Roll Diameter | 3inches(76.2mm) |
Jumbo Roll Inner Diameter | Ф1100mm |
Finish Product Diameter | ф90-ф6140mm |
Finish Product Inner Diameter | ф38-ф48mm |
Perforation Distance | 100-150mm |
Production Speed | 0-180m/min |
Parameter Set | HMl, Touch Screen |
Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa ( Provide by user ) |
Total Power | 7.5-15KW (depends on model and configuration) |
Unwind Stands | 2 or 3 Stands |
Unwinding Transmission | Frequency Stepless Speed Regulation |
Rewinding Unit | With Core or Coreless |
Dimension | 7800X3000X1720mm |
Weight | 3500~4500kg |

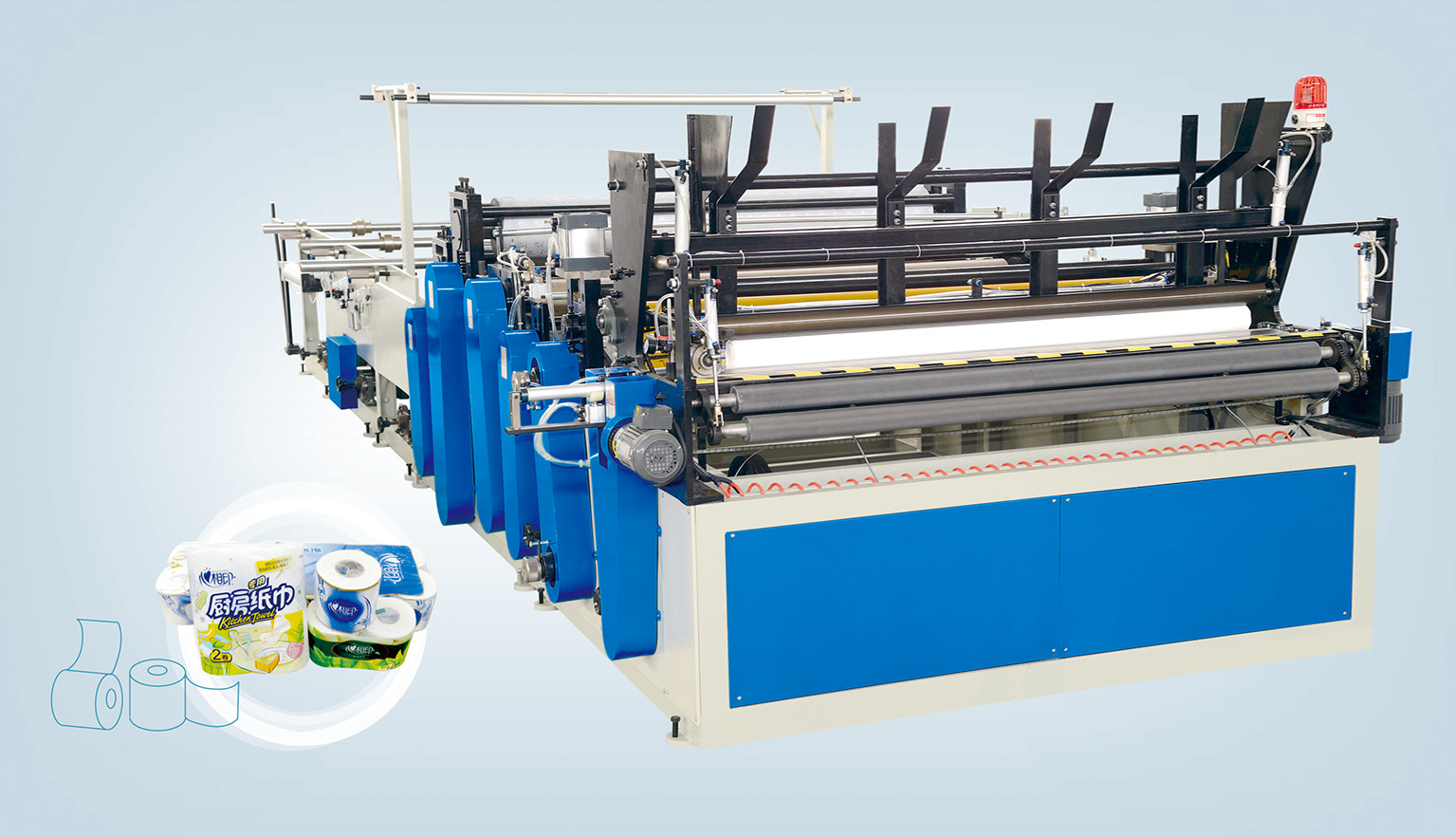

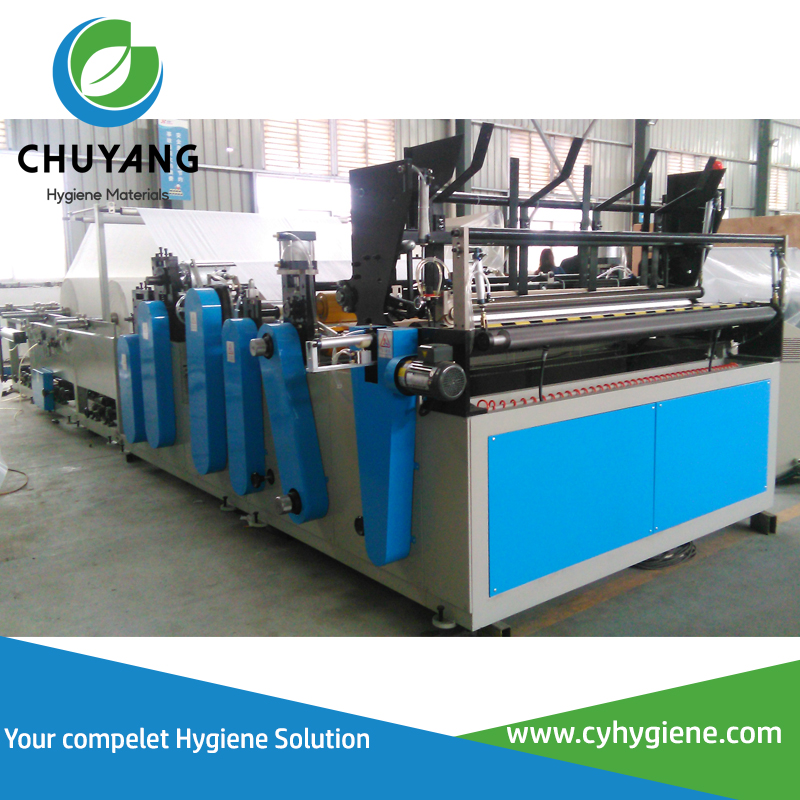

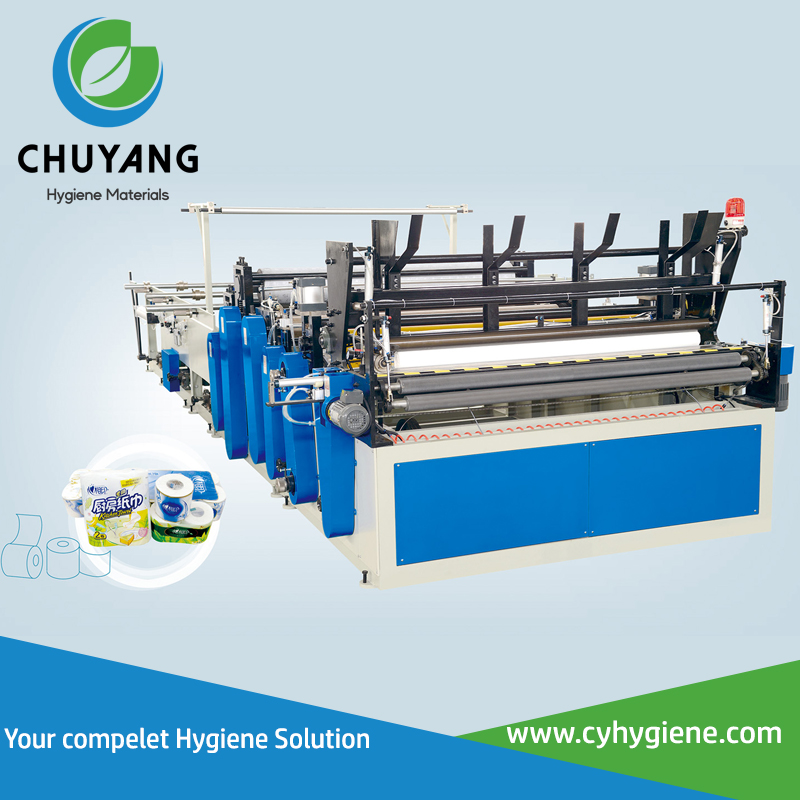

Machine Pcitures

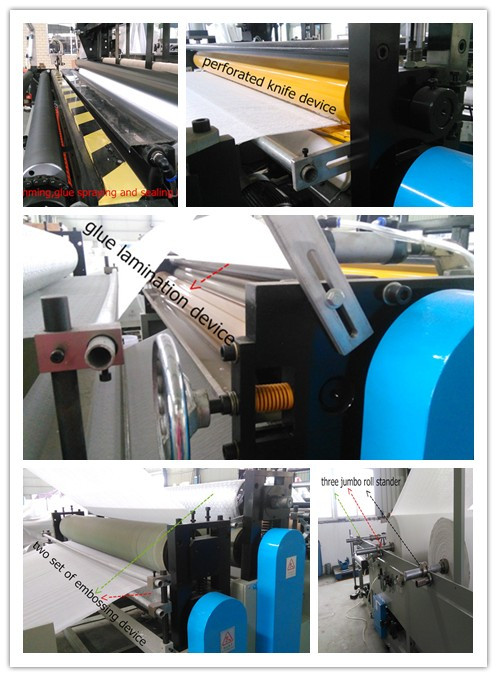

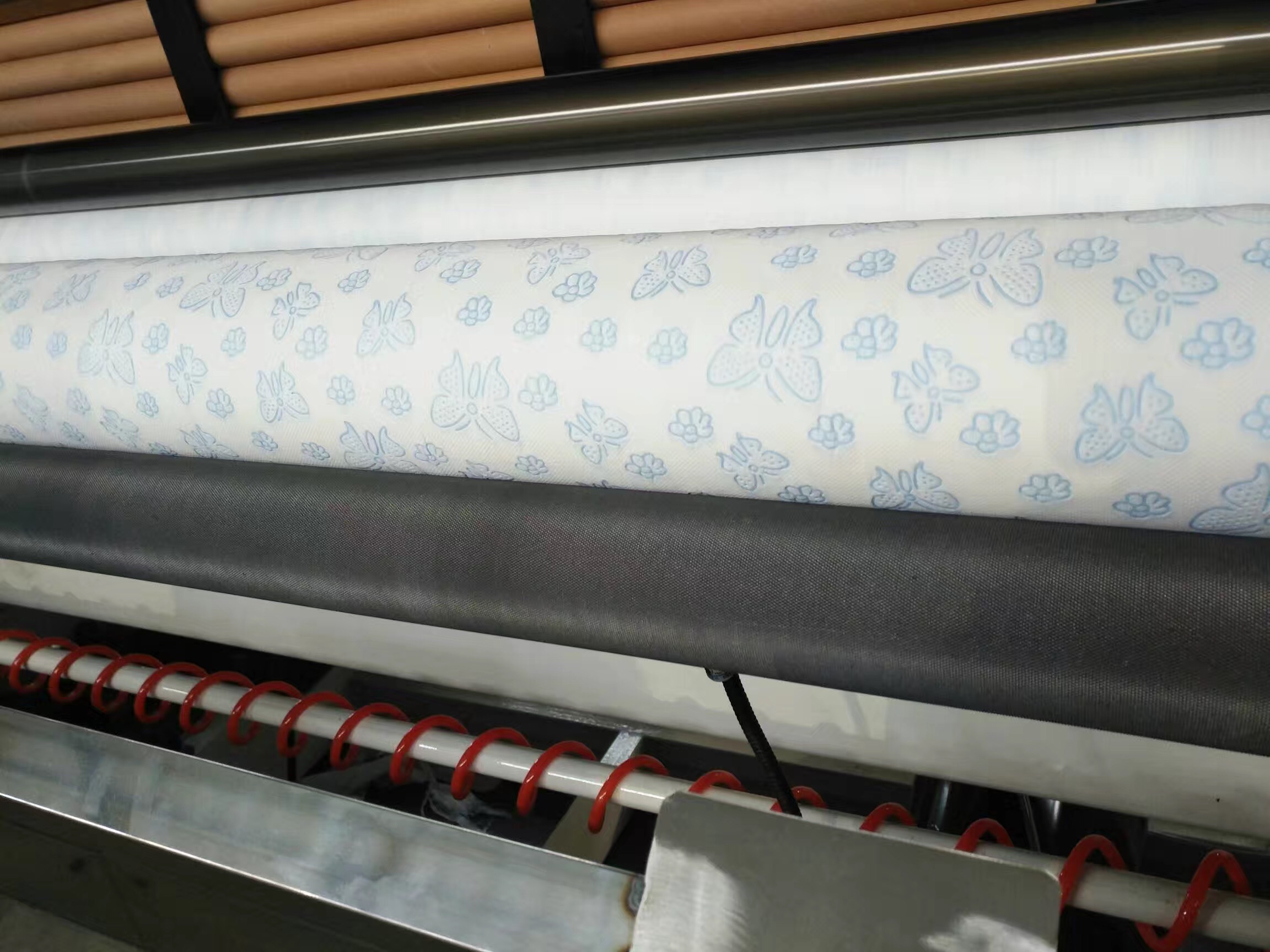

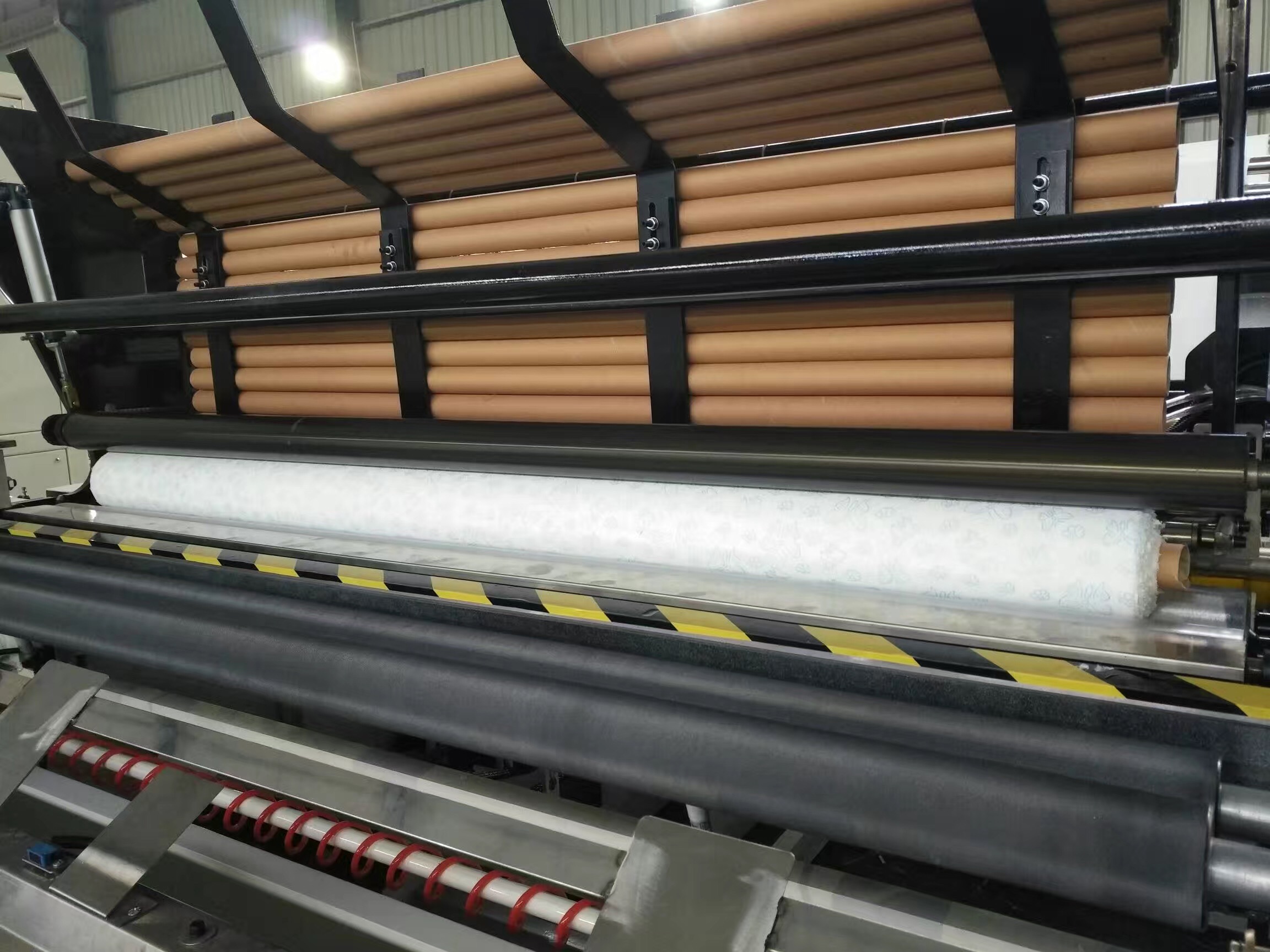

Machine details

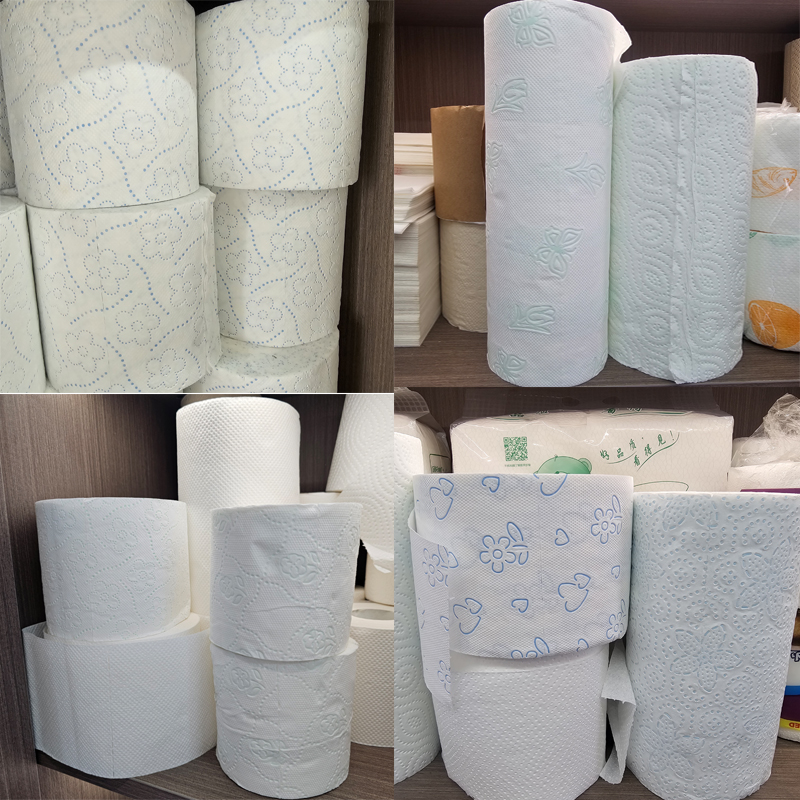

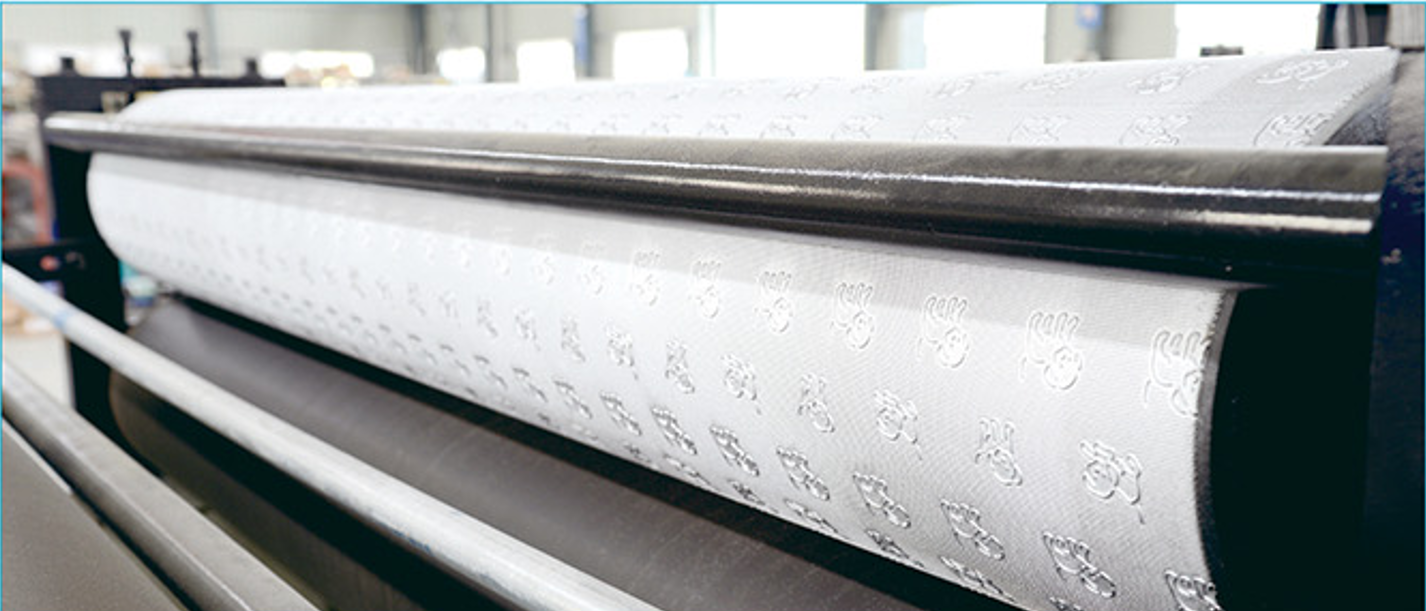

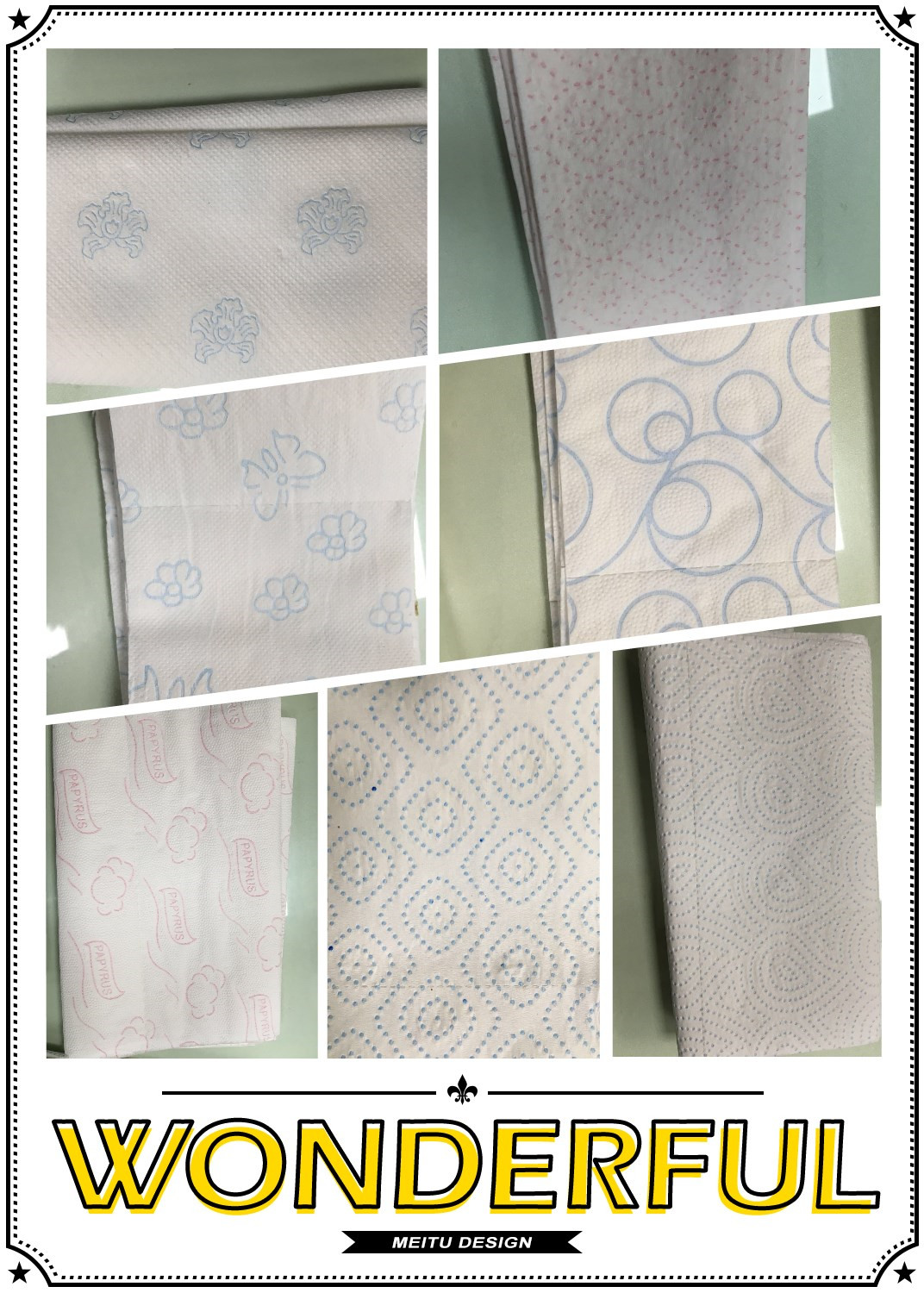

Embossing & finished Product
