MAIN PARAMETER

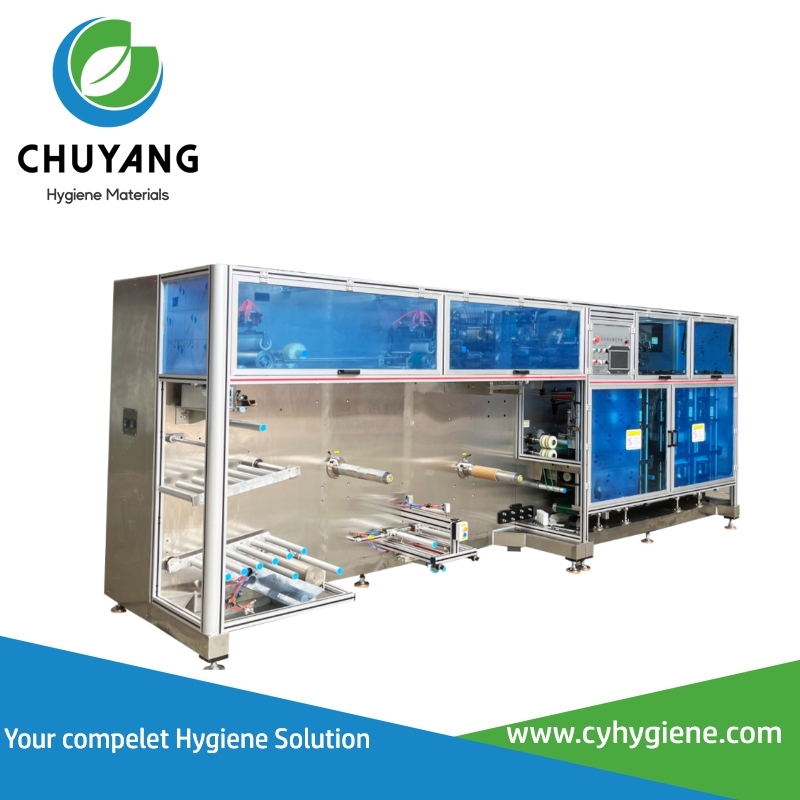

Name | Fully automatic compressed towel machine (double station unwinding and automatic feeding) |
Raw Materials | ALL viscose/cotton spunlace non-woven fabric,small square 60 grams;the largest size is 28*35CM |
Maximum and minimum specification that can be produced | finished cuboid :28*40mm: the smallest size that can be produced is 19*26cm,60grams; the largest size is 28*35cm or 25*38cm |
Power Supply | Three-phase, 380V,50HZ. Total installed power of a single small box ≤35KW(including oil station) |
Speed | Production speed of small squares:380mm±20 pieces/min(according to materials specifications and gram weight); acceptance standard:28*40mm with 70-85cm grams of cloth,unfolded size:240*300mm as the |
FPS | Square:28*40mm,the thickness of the product is subject to the sample confirmed by both parties.After the sample is confirmed, another technical supplementary agreement can be signed. |
Dimension(M) | Length*width*height:5.3*3*2.2cm(for reference, including external gas station) |
Color | The default host black + aluminum alloy frame. |
Qualified Rate | ≥97% (not included wastage from the splicing and leftover material) |
Proposal | Automatic double unwind and Full servo configuration |
Features：
1. High Speed Operation: The machine operates at a high speed, allowing for rapid production of compressed towels, maximizing productivity.
2. Automated process; The entire production process is fully automated,eliminating the need for manual intervention and reduce labor costs.
3. Adjustable Compression Level: The machine offers adjustable compression levels, allowing users to customize the density of the compressed towels according to their requirements.
4. Users-Friendly interface: The machine is equipped with a user-friendly interface, making it easy to operate and monitor the production process.
5. Robust Construction: Built with high-quality materials,the machine is sturdy and durable,ensuring long-lasting performance.
Precautions:
1. Safety First: It is important to strictly follow the safety guidelines provided in the user manual to prevent accidents and ensure safe operation.
2. Regular Maintenance: Regular maintenance and cleaning are necessary to keep the machine in optional condition and prolong its lifespan.
3. Operator Training: Operators should undergo proper training to understand the machine’s operation and maintenance procedures.

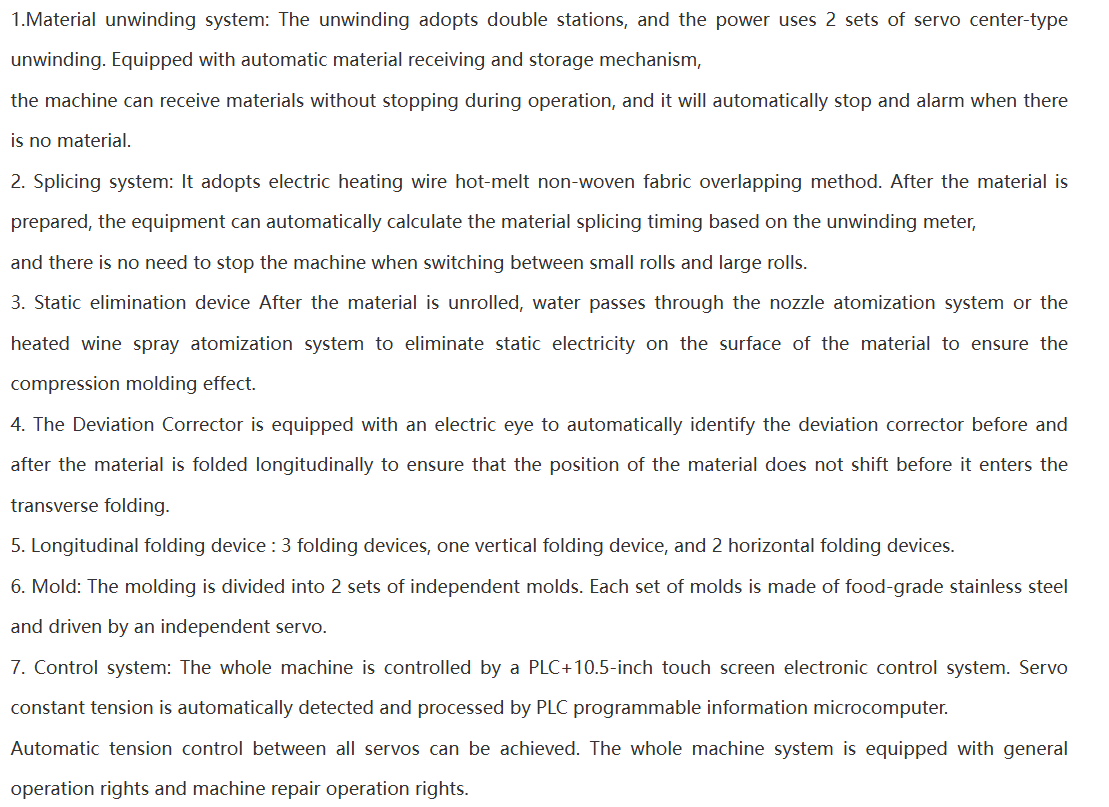

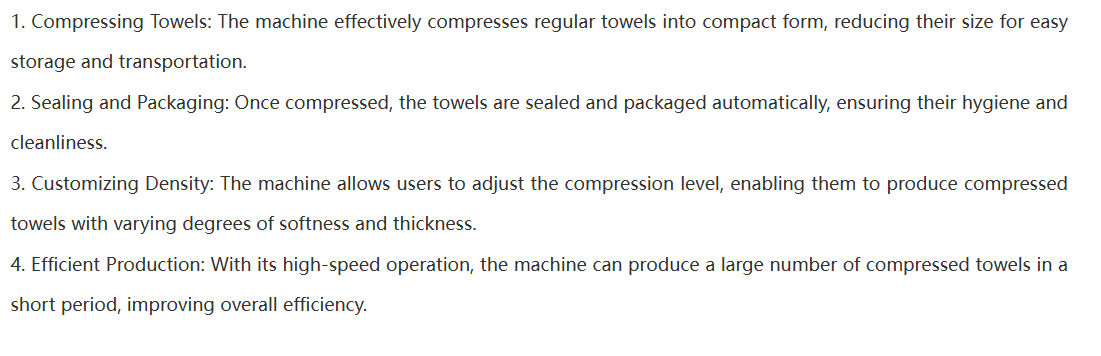

Functions:
How it works:
